AD-100

P/R Module for AD-100

100 MHz 12-bit UT Digitizer

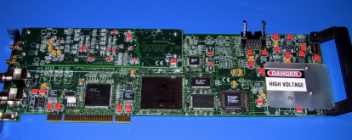

The AD-100 board with the IPR module installed making it a one card AD-IPR UT system.

• Full Length PCI Board

• 12-bit, 100 MHz ADC

• 30 MHz Bandwidth

• 1 MB Waveform Buffer

• 0-40 dB Gain

• 0.5 MHz& 2 MHz High Pass Filter

• 30 MHz, 10 MHz Low Pass Filter

• Optional Distance Amplitude Correction

• Optional Time Of Flight and Peak Amplitude

• Optional P/R Module makes an IPR-AD

IPR-AD Features

• 30 MHz Bandwidth

• -20 to 80 dB gain in 0.1 dB steps

• 6 Selectable High Pass Filters at 0.5, 2.0, 6.0, 8.0, 12.5, 22.5 MHz

• 6 Selectable Low Pass Filters at 2.0, 6.0, 7.5, 12.5, 17.5, 30 MHz

Optional P/R Module for AD-100
Converts AD-100 to an IPR-AD
Includes Low Noise Receiver & Spike Pulser


Features:

• Programmable Voltage 50 - 300 Volts

• < 10 nsec Rise Time

• Programmable Energy - 2 levels

• Programmable Damping - 4 levels

• Programmable Pulse Width

• Up to 10, 000 pulses per second

• Option for 400 volt with < 5 nsec Rise Time

AD-500

IPR-100

2 GHz AD Converter

Pulser / Receiver

• Sampling rates up to 2 GHz for repetitive signals (500 MHz base conversion rate)

• On board DSP with real time feature extraction

• 8-bit linear resolution

• Up to 100 MHz bandwidth

• 0.1 to 35 MHz frequency range

• Software controlled pulser and receiver parameters

• 90 dB dynamic range receiver

• Up to 400 Vdc spike pulser at 5nS

• Internal/external triggering
